Launch Files

Hopefully by this point you've realized that starting every node individually is not always the best option. Doing so not only takes time, but it also results in a plethora of command terminals. ros2 launch is a tool in ROS2 that allows you to start multiple nodes (which are defined in a launch file) with only one command.

Prerequisites

In order to complete this tutorial we need a package to place our launch file. You should complete these two official tutorials first:

Creating a workspace

Creating a package

If you're interested in learning more about the build tool, see "A universal build tool".

Using ros2 launch

ros2 launch starts nodes as defined in a launch file.

Usage:

 ros2 launch [package_name] [launchfile_name]

Example:

 ros2 launch turtlesim multisim.launch.py
Notice that you've launched two turtlesim nodes with only one command. This command will run the following launch file:
# turtlesim/launch/multisim.launch.py

from launch import LaunchDescription
import launch_ros.actions

def generate_launch_description():
    return LaunchDescription([
        launch_ros.actions.Node(
            namespace= "turtlesim1", package='turtlesim', executable='turtlesim_node', output='screen'),
        launch_ros.actions.Node(
            namespace= "turtlesim2", package='turtlesim', executable='turtlesim_node', output='screen'),
    ])

And then, in a new terminal, try:

 ros2 topic pub  /turtlesim1/turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 1.8}}"

And in a third terminal, try:

 ros2 topic pub  /turtlesim2/turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: -1.8}}"

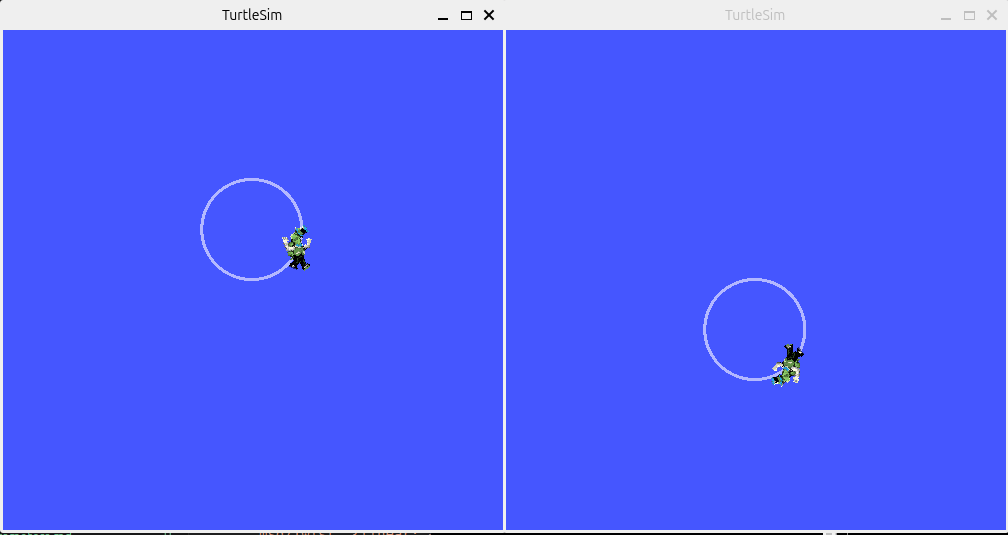

ROS2 Launchfile_two-turtlesim1

Creating a Launch File

First, go to my_package we created and built earlier.

 cd ~/ros2_ws/src/my_package

Then let's make a launch directory:
``` bash
 mkdir launch
 cd launch

NOTE: The directory to store launch files doesn't necessarily have to be named as "launch". In fact, you don't even need to store them in a directory. ros2 launch command automatically looks into the passed package and detects available launch files. However, it is good practice to do so.

The Launch File

Now let's create a launch file called "turtlesim_mimic_launch.py" (or "turtlesim_mimic_launch.xml"). After navigating to the launch directory (cd launch), you could create the file by entering touch turtlesim_mimic_launch.py (The 'touch' command is used to create a file). Then copy&paste the following content into your file:

(Python Version)

from launch import LaunchDescription
from launch_ros.actions import Node

def generate_launch_description():
    return LaunchDescription([
        Node(
            package='turtlesim',
            namespace='turtlesim1',
            executable='turtlesim_node',
            name='sim'
        ),
        Node(
            package='turtlesim',
            namespace='turtlesim2',
            executable='turtlesim_node',
            name='sim'
        ),
        Node(
            package='turtlesim',
            executable='mimic',
            name='mimic',
            remappings=[
                ('/input/pose', '/turtlesim1/turtle1/pose'),
                ('/output/cmd_vel', '/turtlesim2/turtle1/cmd_vel'),
            ]
        )
    ])

(XML Version)

<launch>
  <node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim1"/>
  <node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim2"/>```
### Python Launch File

The **import** statements pull in necessary Python launch modules:
``` python
from launch import LaunchDescription
from launch_ros.actions import Node

Here we start the launch description:

def generate_launch_description():
   return LaunchDescription([......])

Here we start two nodes with a namespace tag of turtlesim1 and turtlesim2 with a turtlesim_node named sim. Therefore, the first two actions are running two turtlesim node:

Node(
    package='turtlesim',
    namespace='turtlesim1',
    executable='turtlesim_node',
    name='sim'
),
Node(
    package='turtlesim',
    namespace='turtlesim2',
    executable='turtlesim_node',
    name='sim'
),

Here we start the mimic node with the topics input and output renamed to turtlesim1 and turtlesim2. This remap will make turtlesim2 mimic turtlesim1:

Node(
    package='turtlesim',
    executable='mimic',
    name='mimic',
    remappings=[
      ('/input/pose', '/turtlesim1/turtle1/pose'),
      ('/output/cmd_vel', '/turtlesim2/turtle1/cmd_vel'),
    ]
)

XML Launch File

The first two actions are running two turtlesim nodes:

<node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim1"/>
<node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim2"/>

The next action is to remap and launch the mimic node:

<node pkg="turtlesim" exec="mimic" name="mimic">
  <remap from="/input/pose" to="/turtlesim1/turtle1/pose"/>
  <remap from="/output/cmd_vel" to="/turtlesim2/turtle1/cmd_vel"/>
</node>

Launching

Now let's go to the launch directory and ros2 launch the launch file you created:

 ros2 launch turtlesim_mimic_launch.py
or
 ros2 launch turtlesim_mimic_launch.xml

With one command from the command line, we were able to start multiple nodes! This is obviously a cleaner and easier approach to start multiple nodes than starting them individually.

Then, in a new terminal, enter:

 ros2 topic pub -r 1 /turtlesim1/turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: -1.8}}"

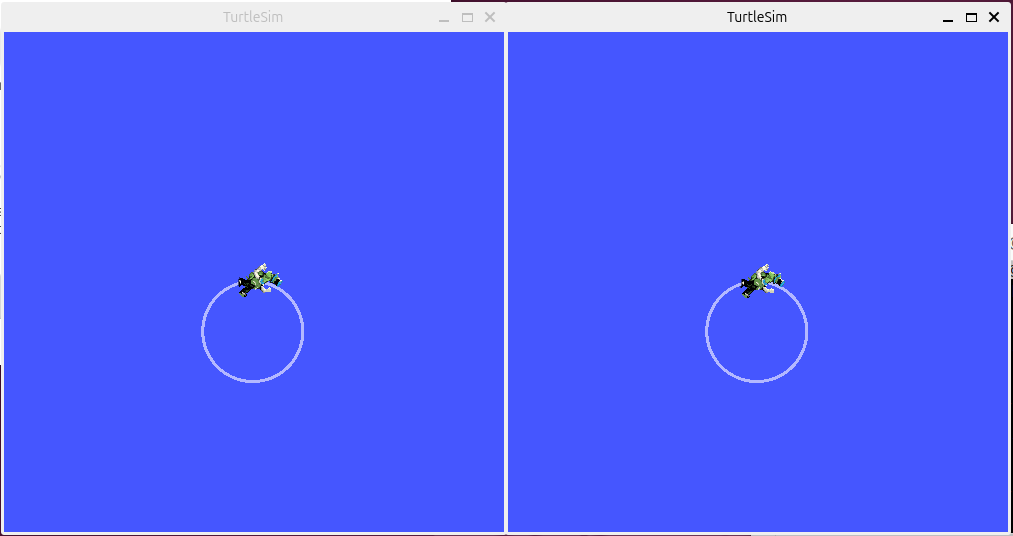

You'll see the two turtlesims start to move in the same way even though the publish command is only being sent to turtlesim1. ROS2 mimic1

NOTE: Don't worry too much about understanding the ros2 topic pub command yet. We will return to it in the next lesson. Basically, this usage of the command continuously publishes commands to turtlesim which tells the turtle to travel in a circle.

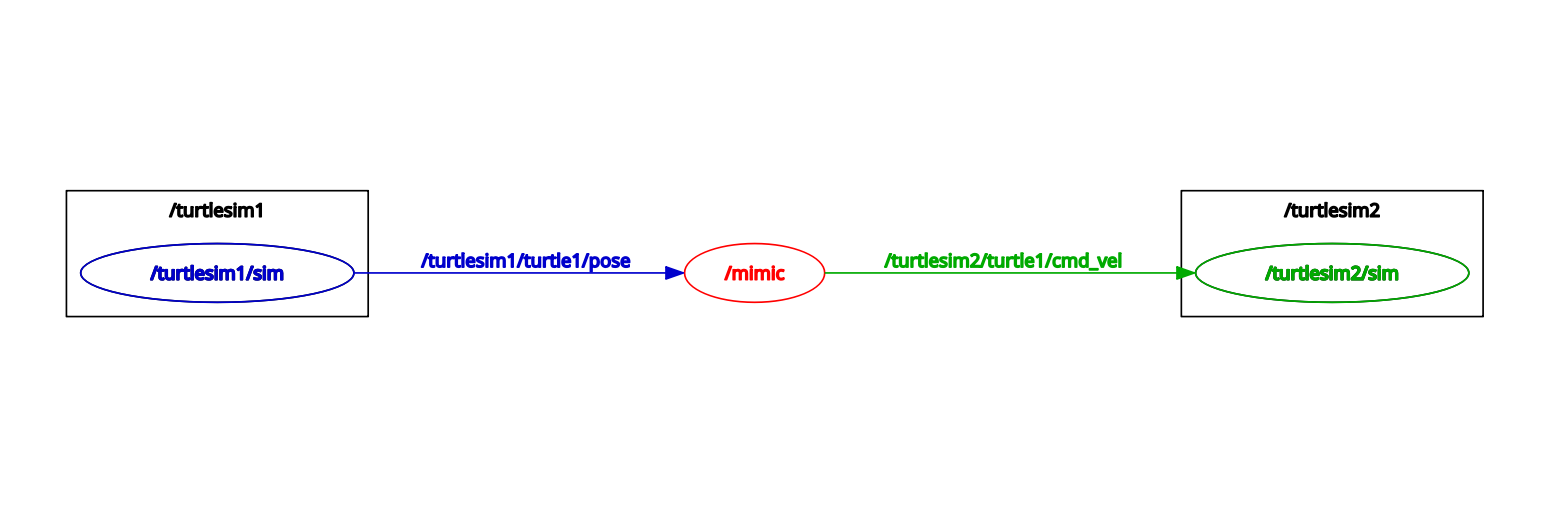

We can also use rqt to better understand what our launch file did. Run:

 rqt
ROS2 mimic2
